164ft Distance Transmission for Airplay Miracast Chromecast 4K
Video Streaming

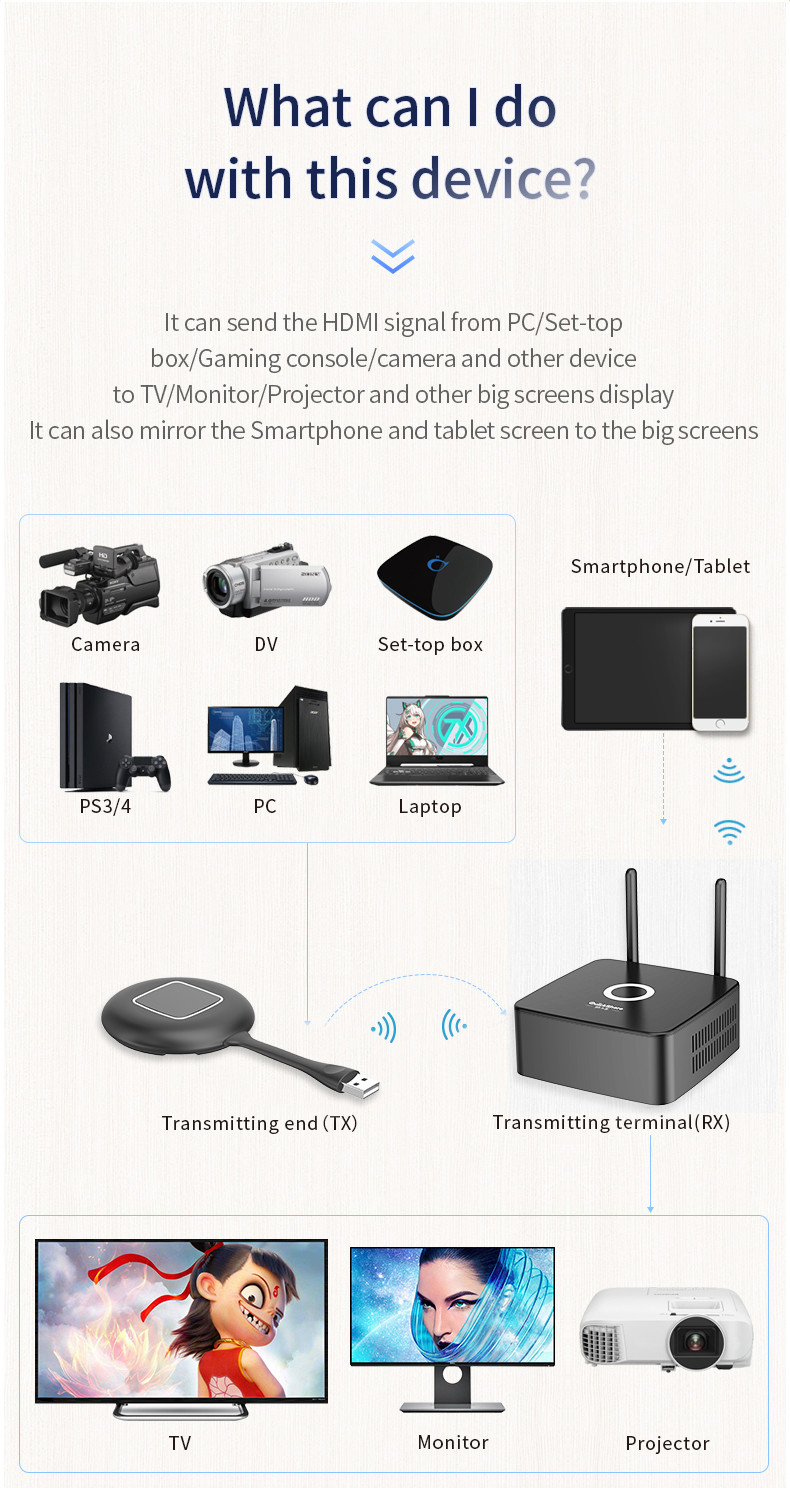

Quickshare is a Wireless Collaboration System. QuickShare can be installed in any meeting room in just a few minutes without
the need of IT network configuration or support . It's elegant
modern and sleek design and looks good on any conference room
table. delivers efficient meetings by showing a crisp Full HD 1080p
image to any projector, monitor, or flat panel.
One to Many Screen Sharing for Classroom
Broadcast lets you share the screen of your computer to any student
device, making lessons more accessible and engaging for everyone.
Selling Point:
1,Support Miracast,Airplay,Windows,Mac mixed casting, All the
devices no need download the APP.
2, Support Miracast & Airplay simultaneously at the same screen.
3, Dual WiFi Module , while mirroring, while surfing on internet.
4, Support Dual screens
5, Support 5G hotspot &5G Sta
Clickshare Wireless COllaboration System Quickshare L2
Specification:
| Windows Mirroring via software |
| Installation | Keep PC and box at the same internet,No need installation |
| Support System | Windows 7/8/10 |
| Resolution | 1920*1200,1920*1080,1366*768,1360*768,1280*800,1280*720 1024*768 |
| Frame Rate | Audio&Video 18~30Frame |
| Delay time | 100~180ms |
| Display mode | Support extended screen |
| Touch Back Control | Support Mouse mode |
| Connection paths number | 128 |
| The most qty display screen | Dual Screens |
| Connecting Internet | 1. When box connect to RJ45,PC Wi-Fi or wired connection of Network
2. When box connect to Wi-Fi,PC Wi-Fi or wired connection of
Network - PC Wi-Fi Connecting to box 5G hotpot
|
| Wireless USB Dongle |
| Installation | No installation, no configuration |
| Connection | USB Device |
| Support system | Windows 7/8/10,Apple Mac |
| Resolution | 720P~1080P |
| Frame Rate | Audio&Video 18~30Frame |
| Delay time | 100~150ms |
| Transmit distance | No obstacle 20meter |
| Display mode | Support extend screen(Windows 7/8/10) |
| Connection number | 1~8(If above8pcs, need additional routers) |
| The most qty display screen | Dual screen |
| Wireless Speed | TX 300Mbps |
| Wireless Protocol | IEEE 802.11 a/g/n/ac |
| Channel | 5.8G, Multi channel Selection |
| Authentication Protocols | WPA2-PSK |
| Upgrading method | PC USB Upgrading the dongle |
| Phones Wiress Mirroring |
| Dual Wi-Fi | 5GHotspot &5.8G Wi-Fi working at same time,While mirroring, the
phone can go surfing. |
| iPhone | iOS8 above, AirPlay mirroring,support multi-screens |
| Android phone | No need APP for mirroring, support Miracast of different android
phones |
| Scanning Screen | Android devices scan QR to download APP |
| Other Functions |
| Automatic Playback | Playback 4K source video from U-disk |
| Video/Audio |
| Video decoding | Support H.264,H.265,VP8,RV,WMV,AVS,H.263,MPEG4 |
| Decoding solution | 4K |
| Touch System |
| Connector | USB HID | Mouse mode | Support |
| Capacitive touch panel | Support | | |
| Operation System |
| System version | Linux | | |
| CPU | RK3229 | HDMI output | 1 |
| DDR | 256M | USB | 2 |
| Flash Memory | 512M | RJ45 | 1 |
| Soft AP | 802.11AC 5.8G | Wi-Fi | 5G |
| HDMI output |
| Resolution | Max 4K 30Hz |
| Adaptor |
| Input | DC:12V | Max consumption | 12W |
|
