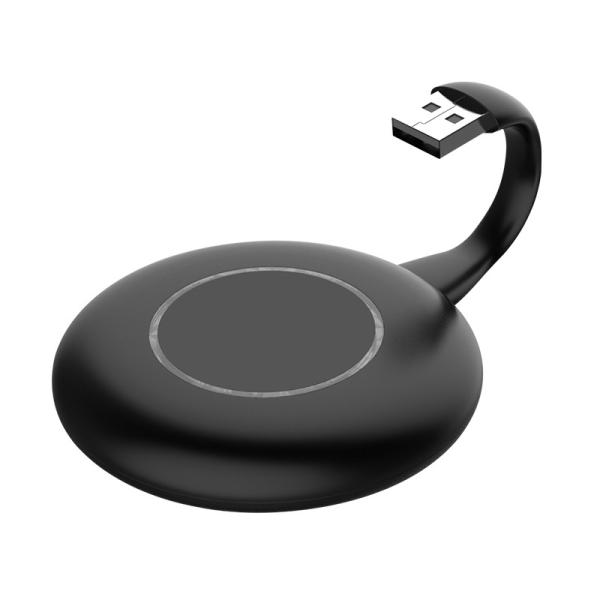

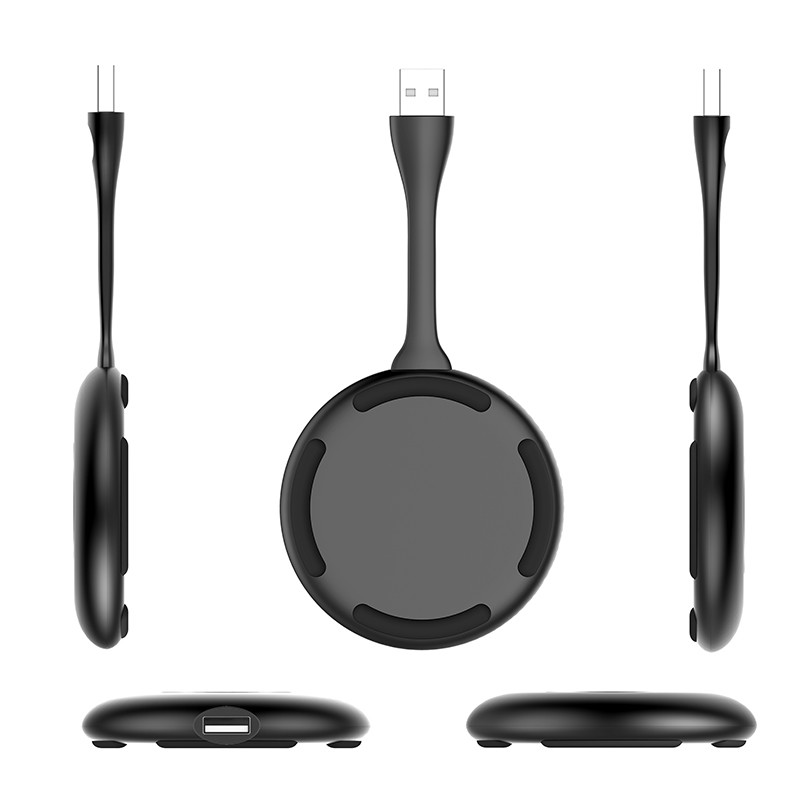

Transmitter is a transmitting device which works with the *receiver
devices to transmit the video source, such as notebook computer,
Laptops, mobile phone and other equipment, to the -receiver for
display.
Receiver include -Mirroring software which built-in Meeting Flipper
Boards and also series of -receiver boxes. Hereby we mainly
introduce the basic use of Transmitters.
| Installation | No Installation, No Configuration |
| Connector | USB Device |
| System | Support Windows 7/8/10,Apple Mac |
| Resolution | 720P~1080P |
| Frame | Max support 1080P 60frames |
| Delay | 90~180ms |
| Display Mode | Support Extended screen |
| Touch back | Support10point touch-back(Windows 7/8/10) |
| Support mouse mode back(Windows,Mac) |
| Connections Number | 1~8((If more than 8devices, you should an additional router) |
| Show screens | 1~9 |
| Transmitting frequency | Transmitter 300Mbps |
| Wireless transmission protocol | IEEE 802.11 a/g/n/ac |
| Frequency | 5.8G |
| Encryption | AES |
| Protocol | WPA2-PSK |
1. USB Transmitter Pairing
Connect the transmitter to the USB port of box to automatically
pair.
2. USB Transmitter upgrading
When the host device is connected to the Internet, the box will
automatically updated according to the server update. If USB
Transmitter pop up the message to upgrade, Please click to upgrade.
And then, you need insert the USB button into the USB port of box
for upgrading and pairing to synchronize the version. Please don’t
plug the USB Transmitter during upgrading.
After upgrading 100%,the interface will show upgrade success, and
then pair with the device. After pairing, you can connect to Laptop
for casting.
3. How to check the USB Transmitter version
As shown in below photo, click the setting in the lower left corner
of the USB Transmitter ,open” ABOUT” to check the current version.
4. How to Pair the transmitter with computers
The transmitter can be also configured with a Windows computer,
which is mainly used when it is not convenient to insert the
transmitter into the host devices.
As shown in below photo, click the settings in the lower left
corner of the transmitter to open the pairing. The pairing
information is consistent with the box information. Click pairing
to prompt that the pairing is successful after 3seconds
