Factory Supply Wireless Video Conference System 4K Wireless Transmitter Wholesales

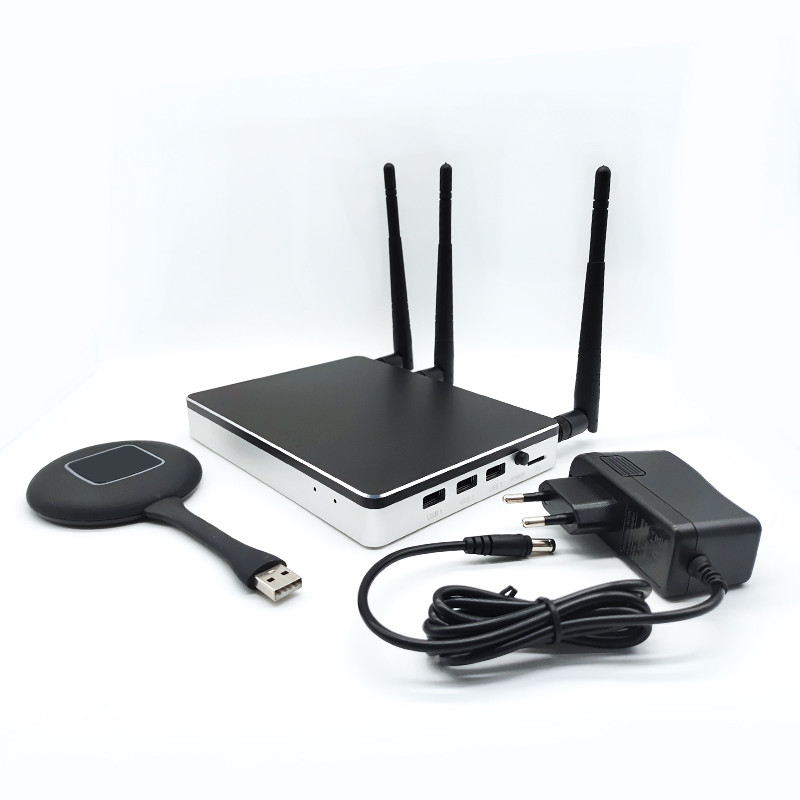

Quickshare is a wireless presentation system for Meeting / Education / Training.

Mirroring screen code

1. Open the projection code, click and enter the server address, and click the screen projection code function switch button. At this time, the red 6 digits in the upper right corner of the screen are the screen projection code.

1. Support ECS / user built server

2. Support windows, MAC, Android clients

[4K Ultra HDMI Resolution]

Quickshare wireless HDMI transmitter and receiver supports video resolution up to 4K(3840 X 2160) and more resolutions(1080P full HD/720P),Built-in chip can prevent delay and lag caused by signal interference, you can enjoy clear and vivid images in a large screen. This Mirroring wireless is perfect for learning, business meeting, family party and playing games and gives you a great screen experience.

• Wireless Video Conference System Quickshare 2019

  Windows Mirroring via software
  Installation		Keep PC and box at the same internet,No need installation
  Support System		Windows 7/8/10
  Resolution		4K 30Hz, 1920*1200,1920*1080,1366*768,1360*768,1280*800,1280*720 1024*768
  Frame Rate		Audio&Video 18~60Frame
  Delay time		100~150ms
  Display mode		Support extend screen
  TouchBackControl		Support Mouse mode return
  Connection paths number		128
  The most qty display screen		Single Screen
  Meeting Mode		Host mode	The host can touch the list of screens to select the designated PC screen
  		Participant mode	During the meeting,when non-host transmits the screen, whoever press the button and who can transmit.
  Connecting Internet		1. When box connect to RJ45,PC Wi-Fi or wired connection of Network 2. When box connect to Wi-Fi,PC Wi-Fi or wired connection of Network PC Wi-Fi Connecting to box 5G hotpot
  Wireless USB Dongle
  Installation		No installation, no configuration
  Connection		USB Device
  Support system		Windows 7/8/10,Apple Mac
  Resolution		720P~1080P
  Frame Rate		Audio&Video 18~30Frame
  Delay time		100~150ms
  Transmit distance		No obstacle 30m
  Display mode		Support extend screen(Windows 7/8/10)
  TouchBackControl		Support 10 fingers touch returns(Windows 7/8/10)
  		Support mouse mode return (Mac)
  Connection number		1~8(If above8pcs, need additional routers)
  The most qty display screen		Dual screen
  Wireless Speed		TX 300Mbps
  Wireless Protocol		IEEE 802.11 a/g/n/ac
  Channel		5.8G, Multi channel Selection
  Authentication Protocols		WPA2-PSK
  Upgrading method		PC USB Upgrading the dongle
  Meeting Mode		Host Mode	The host can touch the list of screens to select the designated PC screen
  		Participant mode	During the meeting,when non-host transmits the screen, whoever press the button and who can transmit.
  Phones Wiress Mirroring
  Dual Wi-Fi		5GHotspot &2.4G Wi-Fi working at same time,While mirroring, the phone can go surfing.
  Scanning Screen		Android devices scan QR Codes and casting
  Cross Segments		Under the same Network, the screen transmission can between different network segments
  iPhone		iOS8 above,AirPlay mirroring,support multi-screens
  Android phone		Android 5.0 and above, and download USBdisplay.cn APP can mirroring videos which can pass-through sound
  MiraPlay Mode		No need APP for mirroring, support Miracast,AirPlay,USB wireless mirroring
  Other Functions
  Rotating		Support 90° 180°270° photos Rotating
  Dynamic Password		Support APP mirroring, AirPlay,Windows software mirroring
  Take notes		Gesture Erasure, support scan QR code and share
  Audio output		HDMI output
  RTC		Built-in super capacitor to maintain normal operation 1week if power down
  Restart Timely		Support timely restart and keep the whole year work normally without power down.
  Other APPs		Customization Welcome, files explores and screen saver
  Router Mode		Support 2.4G&5.8G AP at the same time for mirroring(optional)
  Video/Audio
  Video decoding		Support H.264,H.265,VP8,RV,WMV,AVS,H.263,MPEG4
  Decoding solution		4K
  Touch System
  Connector		USB HID		Mouse mode	Support
  IR touch control		Support		Capacitive touch panel	Support
  Operation System
  System version		Android 7.1
  CPU		ARM Cortex A7 x 4		HDMI output	1
  DDR		1G DDR3		VGA	1
  Flash Memory		8G		TF	Max support 64G
  Lan		RJ45		IR Receiver	Support
  Soft AP		802.11AC 5.8G		Wi-Fi	5.8G

Shenzhen Bozee has established in 2014, and participated in different shows all over the world,and we are a big family which  has positive,hardworking,diligent guys to take in many acitivities together. Our reputation Quickshare Collaboration supports dual Wi-Fi network protocols. It supports Dual bands wifi 5.8GHz with high sensitivity antennas to give you the best wireless display experience. It can Support iOS/Android/Windows/MAC/Linux system, you can see easy mirroring from your phones/pads/laptop/PC to the big screen and share in the meeting. QuickShare BYOD Wireless Presentation system equipment are popular for schools and enterprises.
